Download our tools to your smartphone and your computer.

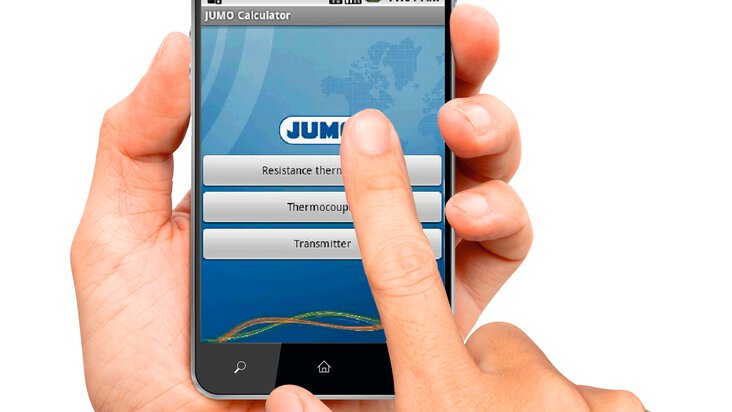

We would like to share our know-how with you and make your everyday life easier with our useful little helpers. For this purpose we have developed 2 tools for you.
The cold junction temperature can be individually specified and the corresponding temperature is calculated from a specified thermoelectric voltage or vice versa from a temperature value the corresponding thermoelectric voltage.
Furthermore, the standardized tolerance classes according to DIN IEC 60584 can be selected. The permissible tolerance as well as the upper and lower limits of temperature and thermoelectric voltage are displayed for the respective measuring temperature. The following thermocouple types are available:
- Noble metal thermocouples; R, S and B
- Non-noble metal thermocouples: K, N, E, J and T
After selecting the nominal value Pt 100, Pt 500 or Pt 1000, the corresponding resistance value can be calculated from the specified temperature and vice versa.
After selecting tolerance class AA, A, B and C, the permissible tolerance is calculated, the lower and upper limits of the class as resistance and temperature value to the specified temperature.
For the two-wire circuit, after selecting a specific conductor material (copper, silver, nickel and iron) for the connecting cable and entering the conductor cross-section or diameter and the cable length, the cable resistance and the associated systematic temperature error are calculated at the entered measuring temperature.
Transmitters are used to represent the measuring range of a variable linearly on a standard signal. Different temperature ranges (also individually adjustable) and the standard signals 4 to 20 mA and 0 to 10 V can be selected. The respective output signal can then be calculated from a temperature value or vice versa.
